Description: Surge protection limiters designed to protect TVSS systems. Apply in conjunction with TVS voltage surge protector to provide complete surge protection. Able to withstand 8x20 μSec surge pulses without opening. Limiters are identified by a surge rating and not continuous current rating. Available with optional printed circuit board tabs.

Construction: Melamine tube with nickel-plated brass end caps.

Ratings*:
Volts: 600Vac
IR: 200kA RMS Sym.
* See Catalog Numbers table for all specifications pertaining to specific ratings.

Agency Information: CE, UL Recognized 600Vac, File E56412. Designed to protect TVSS systems per UL 1449 Second Edition requirements.

Features and Benefits
• Optional tabs for mounting on printed circuit board.

Catalog Numbers

Catalog Numbers	8*20μs Surge Rating melting I2t(A2 Sec)	Clearing I2t (A2 Sec)	Ipeak @ 100kA 60Hz (A)
TVSS-5	5000A	559	1650	4283
TVSS-10	10000A	1788	5766	6618
TVSS-15	15000A	3760	9730	7843
TVSS-20	20000A	6020	14000	8594

Above catalog numbers are available with printed circuit board tabs. When ordering, use suffix “-01”.

Dimensions

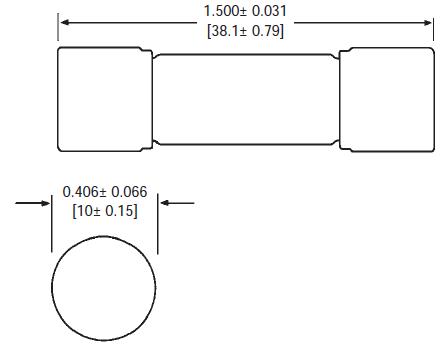

- Ferrule Style

- Optional Printed Circuit Board Tabs
