Description:
A square bodied range of industrial fuse links for a wide variety of applications.

Part Number Structure:
(amp)NHG(size)B-690,
e.g. 100NHG00B-690

Class of Operation: gL/gG

Standards/Approvals: IEC 60269, DIN 43620

Ratings:

• Volts: 690Vac

• Amps: 2 to 500A

• Breaking Capacity: 120kA AC

• Operating Frequency: 45-62Hz

Environmental:

• Recyclable

• RoHS compliant

• Lead and Cadmium free for sizes 000 to 3 (2 to 500A)

Packaging: All fuse links are packed in 3’s.

Features:

• Energy savings

• Reliable dual indicator system

• Low temperature rise

• Globally compliant

• Intuitive part numbers

Difference between Insulated Metal Gripping Lugs (IMGL) and standard NH fuse link

Microswitch for remote indication:

• BVL-50

Technical Data

Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	I2t (Amps2 Seconds)		Watts Loss	Net Weight per Fuse
Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	Minimum Pre-arcing	*I1 120kA @ 690Vac	Watts Loss	Net Weight per Fuse
000 ~ 00	2NHG000B-690	2NHG000BI-690	2	3.5	8	4	0.133kg
	4NHG000B-690	4NHG000BI-690	4	6	16	2
	6NHG000B-690	6NHG000BI-690	6	14	25	2
	10NHG000B-690	10NHG000BI-690	10	60	400	1.5
	16NHG000B-690	16NHG000BI-690	16	240	1200	2.5
	20NHG000B-690	20NHG000BI-690	20	500	2500	2.5
	25NHG000B-690	25NHG000BI-690	25	920	4400	3.5
	32NHG000B-690	32NHG000BI-690	32	1800	9600	3.5
	35NHG000B-690	35NHG000BI-690	35	2400	12700	4
	40NHG000B-690	40NHG000BI-690	40	3300	15000	4
	50NHG00B-690	50NHG00BI-690	50	3000	21000	5	0.200kg
	63NHG00B-690	63NHG00BI-690	63	5500	38000	6
	80NHG00B-690	80NHG00BI-690	80	9800	67000	7
	100NHG00B-690	100NHG00BI-690	100	18000	119000	9.5

Size	Part Numbers with Metal Gripping Lugs	Amp Rating	I2t (Amps2 Seconds)		Watts Loss	Net Weight per Fuse
Size	Part Numbers with Metal Gripping Lugs	Amp Rating	Minimum Pre-arcing	*I1 120kA @ 690Vac	Watts Loss	Net Weight per Fuse
0	6NHG0B-690	6	14	25	2	0.245kg
	10NHG0B-690	10	58	430	2
	16NHG0B-690	16	240	1400	3
	20NHG0B-690	20	490	2800	3.5
	25NHG0B-690	25	1200	5400	3.2
	32NHG0B-690	32	1800	10800	4.8
	35NHG0B-690	35	2400	12700	4.7
	40NHG0B-690	40	3300	16500	5
	50NHG0B-690	50	3000	14700	6
	63NHG0B-690	63	5500	26000	7
	80NHG0B-690	80	9800	44000	8.5
	100NHG0B-690	100	18000	75000	9.5

Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	I2t (Amps2 Seconds)		Watts Loss	Net Weight per Fuse
Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	Minimum Pre-arcing	*I1 120kA @ 690Vac	Watts Loss	Net Weight per Fuse
1	50NHG1B-690	50NHG1BI-690	50	3000	20000	6.0	0.409kg
	63NHG1B-690	63NHG1BI-690	63	5500	38000	7.0
	80NHG1B-690	80NHG1BI-690	80	9800	71400	8.5
	100NHG1B-690	100NHG1BI-690	100	18000	136000	9.5
	125NHG1B-690	125NHG1BI-690	125	27000	98300	13.0
	160NHG1B-690	160NHG1BI-690	160	58000	195000	14.0
	200NHG1B-690	200NHG1BI-690	200	106000	328000	16.0

Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	I2t (Amps2 Seconds)		Watts Loss	Net Weight per Fuse
Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	Minimum Pre-arcing	*I1 120kA @ 690Vac	Watts Loss	Net Weight per Fuse
2	63NHG2B-690	63NHG2BI-690	63	5500	66300	7.5	0.647kg
	80NHG2B-690	80NHG2BI-690	80	9800	112400	9
	100NHG2B-690	100NHG2BI-690	100	18000	193000	10
	125NHG2B-690	125NHG2BI-690	125	27000	112000	12.5
	160NHG2B-690	160NHG2BI-690	160	58000	207000	15
	200NHG2B-690	200NHG2BI-690	200	106000	328000	17.5
	224NHG2B-690	224NHG2BI-690	224	108000	355000	21
	250NHG2B-690	250NHG2BI-690	250	153000	625000	24
	315NHG2B-690	315NHG2BI-690	315	242000	788000	31

Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	I2t (Amps2 Seconds)		Watts Loss	Net Weight per Fuse
Size	Part Numbers with Metal Gripping Lugs	Part Numbers with Insulated Metal Gripping Lugs	Amp Rating	Minimum Pre-arcing	*I1 120kA @ 690Vac	Watts Loss	Net Weight per Fuse
3	250NHG3B-690	250NHG3BI-690	250	153000	626000	23.0	1.113kg
	315NHG3B-690	315NHG3BI-690	315	242000	798000	30.0
	355NHG3B-690	355NHG3BI-690	355	343000	130200	33.0
	400NHG3B-690	400NHG3BI-690	400	423000	1607000	38.0
	425NHG3B-690	N/A	425	430000	1418000	41.0
	500NHG3B-690	N/A	500	764000	2402000	45.0

* I1 is the maximum breaking capacity test at rated voltage according to IEC 60269 requirements

Time-Current Characteristics
2 to 100 Amps - Sizes 000 & 00

6 to 100 Amps - Size 0

50 to 200 Amps - Size 1

63 to 315 Amps - Size 2

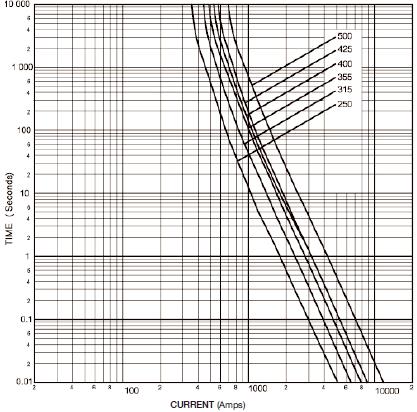

250 to 500 Amps - Size 3

Cut-Off Current Characteristics
